Channel-cut Si(111) + KB focusing mirrors

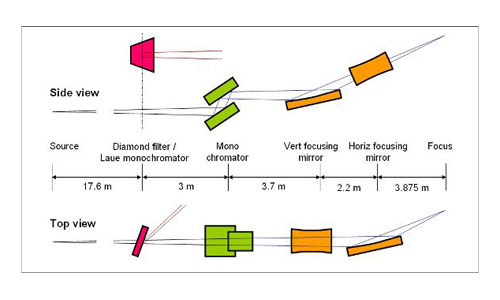

The main XALOC optical elements are: a diamond window (not shown in figure); a removable diamond filter (which could also be used as a Laue monochromator); a channel-cut monochromator; and a Kirkpatrick-Baez (KB) focusing system.
Monochromator
Type | Si(111) channel-cut, cryocooled |
Gap between crystals | 6 mm |
Absorbed power | <100 W (in working conditions) |
Bragg axis resolution (measured) | <1 µrad (<0.2 arcsec) |
Bragg axis stability (measured) | <1 µrad/1 hour |

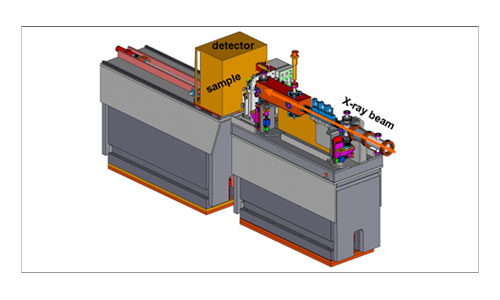

KB Mirrors
Vertical Focusing Mirror | Horizontal Focusing Mirror | |
---|---|---|
Type | Elliptically bent mirror | Elliptically bent mirror |
Substrate | Si | Si |
Coating material | Si, Rh, Ir | Si, Rh, Ir |
Angle of incidence | 4.1 mrad | 4.1 mrad |
Optical length | 300 mm | 600 mm |
RMS slope error (bent, measured) | <0.1 µrad | <0.1 µrad |
Other optical elements include white beam attenuators, slits, photon shutter, fluorescent screens and x-ray beam positioning monitors.
