Researchers from the Institut de Ciència de Materials de Barcelona (ICMAB-CSIC) and ALBA Synchrotron have led a collaborative research, together with the Institut Català de Nanociència i Nanotecnologia (ICN2), the Dept. of Electronics and Biomedical Engineering (University of Barcelona) and CIC nanoGUNE (Donostia), where they have exploited X-ray absorption spectroscopy at the BOREAS beamline of ALBA for unveiling the optical and spin transport properties of transition metal oxides for photovoltaics and spintronics applications.

Cerdanyola del Vallès, 19th July 2019

. There is an urgent need of metallic and transparent electrodes for applications in advanced technologies such as flat panel displays or electrodes for photovoltaics, that may substitute the ubiquitous and exceedingly expensive and scarce Indium-Tin oxide (ITO). The

AMO3

perovskites (being A an alkaline earth and M an early 3d transition metal, e.g. SrV

O3

) are driving attention because their intrinsic metallic character combines with the strong electron correlation within the narrow 3d band, to produce a material having its plasma frequency down to infrared and thus transparent at visible range.

By exploiting the sensitivity of to electronic orbital occupancy, researchers have been able to show that epitaxial strain acting on SrVO3 thin films, is a toggle that allows modulating the

3d1-t2g

bandwidth and thus the effective mass of 3d1 carriers, ultimately dictating the plasma frequency of the films (see Figure 1).

These results, which have just been published in Advanced Functional Materials journal, pave the way for tuning the optical transport properties for photovoltaics.

[1]

Figure 1. (a) Crystal-field splitting of V 3d1-t2g orbitals in SrVO3. (b) XLD at Vanadium L2,3 edge in SrVO3 films grown on different substrates as indicated. (c) Independent modulation of the plasma frequency in SrVO3 films grown on different substrates (left axis) and their electrical resistivity (right axis).

Pure spin currents in spintronics may permit to alleviate the energy consumption of devices based on spin-transfer-torque or other charge-current controlled devices. Spin currents can be generated by a number of methods, including charge flow in presence of a large spin-orbit (SO) coupling (Spin Hall effect), spin pumping or thermal gradients in magnetic materials, to mention some few. Detection can be made by exploiting the so-called inverse spin Hall effect, in which a spin current creates a voltage in a SO metal. The nature of interfaces plays a major role in spin current observation (see Figure 2).

Scientists have recently published in Advanced Materials & Interfaces a topical review on "spin transport" addressing the above issues.

[2]

Using X-ray absorption spectroscopy (XAS) and together with exhaustive electrical and microstructural characterizations, they have undertaken a complete analysis of the interface between a ferromagnetic insulator (CoFe2O4, CFO) and a heavy metal (Pt), looking for magnetic fingerprints at Pt-M edge and possible changes of electronic and magnetic structure at (Fe,Co)-L edges of

CoFe2O4

. It was shown that growth conditions of Pt/CFO have a major impact interface magnetism and that spin magnetoresistance and XMCD can be a tool to distinguish between bulk and (interface) surface magnetic properties.

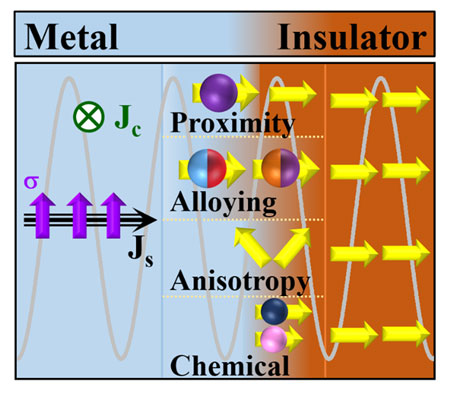

Figure 2. Illustration of different phenomena occurring at the interface between a ferromagnetic insulator and a heavy metal.

References

  1. Mathieu Mirjolet, Hari Babu Vasili, LLuís López-Conesa, Sònia Estradé, Francesca Peiró, José Santiso, Florencio Sánchez, Pamela Machado, Pierluigi Gargiani, Manuel Valvidares, and Josep Fontcuberta, Independent Tuning of Optical Transparency Window and Electrical Properties of Epitaxial SrVO3 Thin Films by Substrate Mismatch, Advanced Functional Materials 1904238 (2019), DOI: 10.1002/adfm.201904238

  2. Josep Fontcuberta, Hari Babu Vasili, Jaume Gàzquez, and Fèlix Casanova, On the Role of Interfaces on Spin Transport in Magnetic Insulator/Normal Metal Heterostructures, Advanced Materials & Interfaces, 1900475 (2019), DOI: 10.1002/admi.201900475
